Product Specifications
Bidirectional DC-DC Module
G1521
Bidirectional DC-DC module
Low voltage DPS system matching
Maximum efficiency up to 97%
Support monitoring voltage regulation
TUV, CE, UL safety certification, 4kV ESD certification
Add to inquiry List
Product introduction

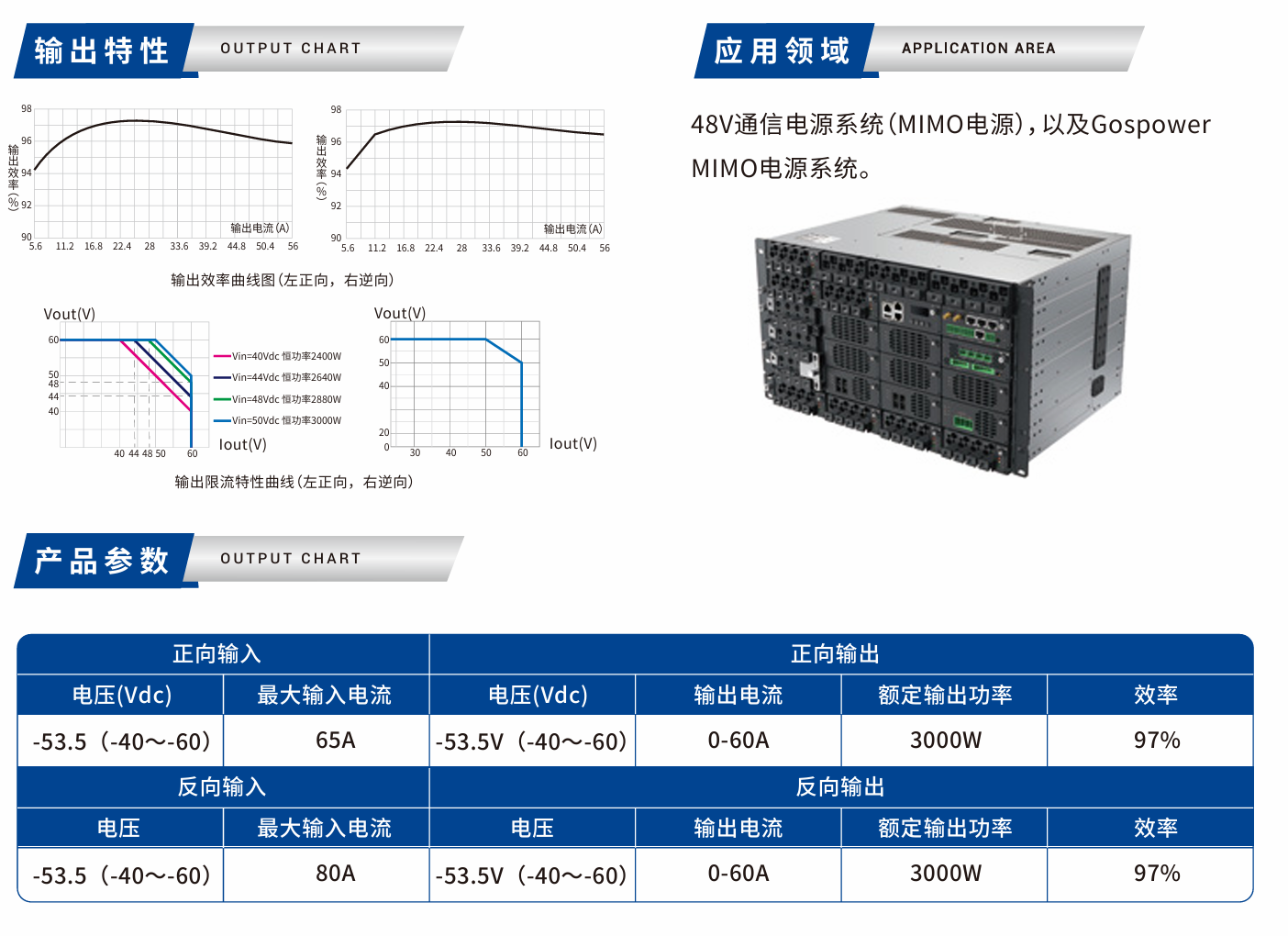

GP-D4848-C1 bidirectional DC-DC module is a function module for 48V communication power system (MIMO power supply), which can help the power system adapt to 48V energy storage battery energy input, or reverse to battery energy storage, and is widely used in a variety of outdoor communication station power system. The module supports positive and negative rated -53.5Vdc input and -53.5V output, allowing monitoring to adjust the input/output voltage to the range of -40V to -60V, suitable for a variety of battery packs, with an efficiency of 97%.
Product highlights
-53.5V bidirectional DC-DC
Full digital control
LED display warning
Supports hot swap
48V battery ADAPTS
Multiple protection function
System Configuration
Provide smart energy solutions for a low-carbon society
Please submit your inquiry, our professionals will contact you shortly.
