Product Specifications
Photovoltaic Module
G1463
Operation, protection, fault indicator light
Stable 53.5Vdc output up to 56A
MTBF≥ 100,000 hours, 1.4 times MPPT overload capacity
Add to inquiry List
Product introduction
GP-PV4850-D1 is a communication power photovoltaic module independently developed by Kosberg, which can support a 3.6kW MPPT photovoltaic input and convert it into a standard voltage of 53.5Vdc for the communication power system.
The photovoltaic module has 58~150V wide voltage adaptation, the maximum input current 70A, supports the market mainstream 166/182/210 PV board series/parallel access, with 1.4 times MPPT overload capacity, MTBF greater than 100,000 hours.
Based on the 1U standard frame design of the communication power supply, the module can be used for photovoltaic transformation of existing communication stations, and can also be used in Gospower MIMO power system, which is an important component of the mixed energy intelligent solution of the end station.
Product highlights
Wide voltage input
The efficiency can reach 96.5%
Multiple PV board matching
Can be parallel, automatic flow sharing
Overvoltage, short circuit protection
Supports hot swap

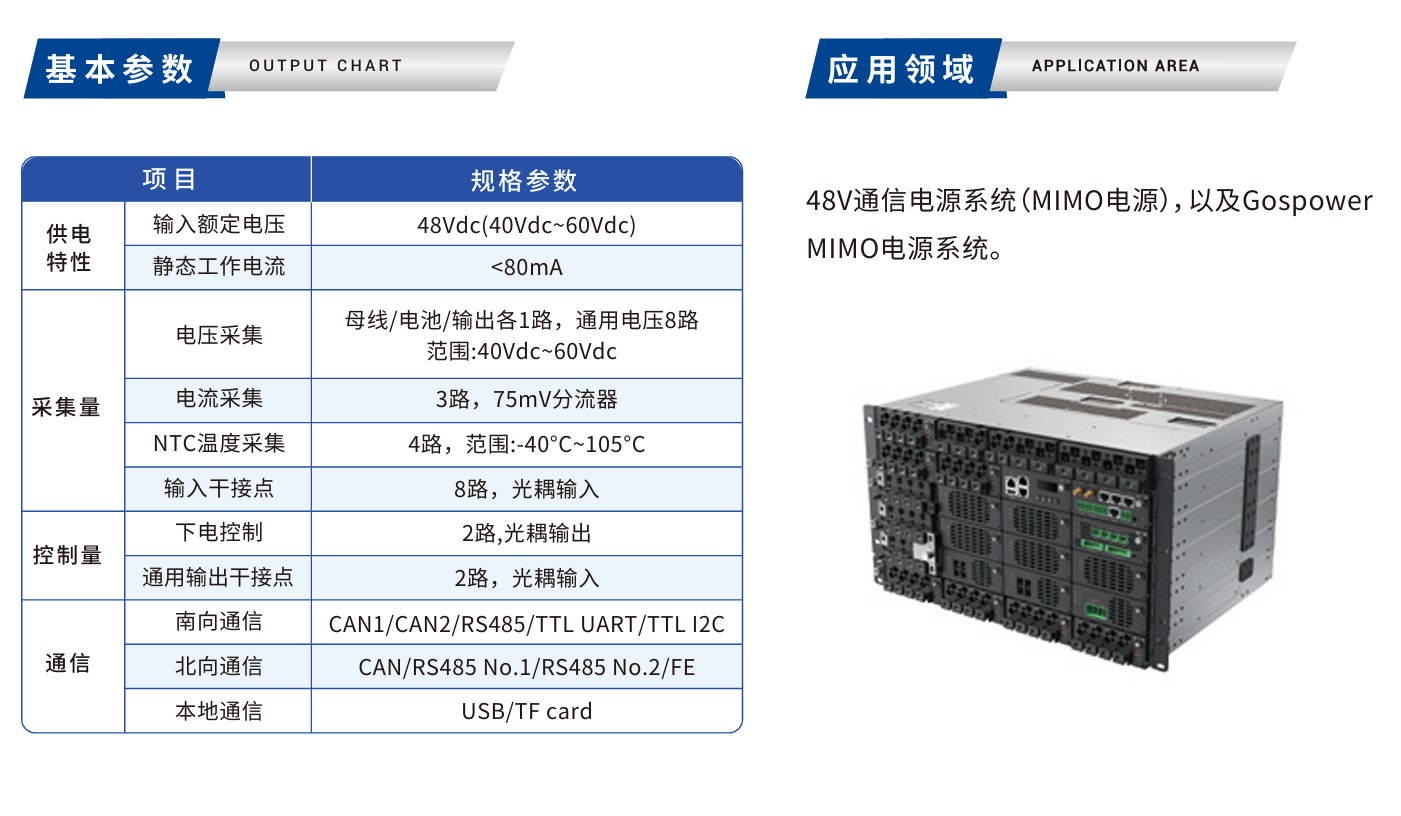

System Configuration
Provide smart energy solutions for a low-carbon society
